HVAC System-Tracer ES

Overview:

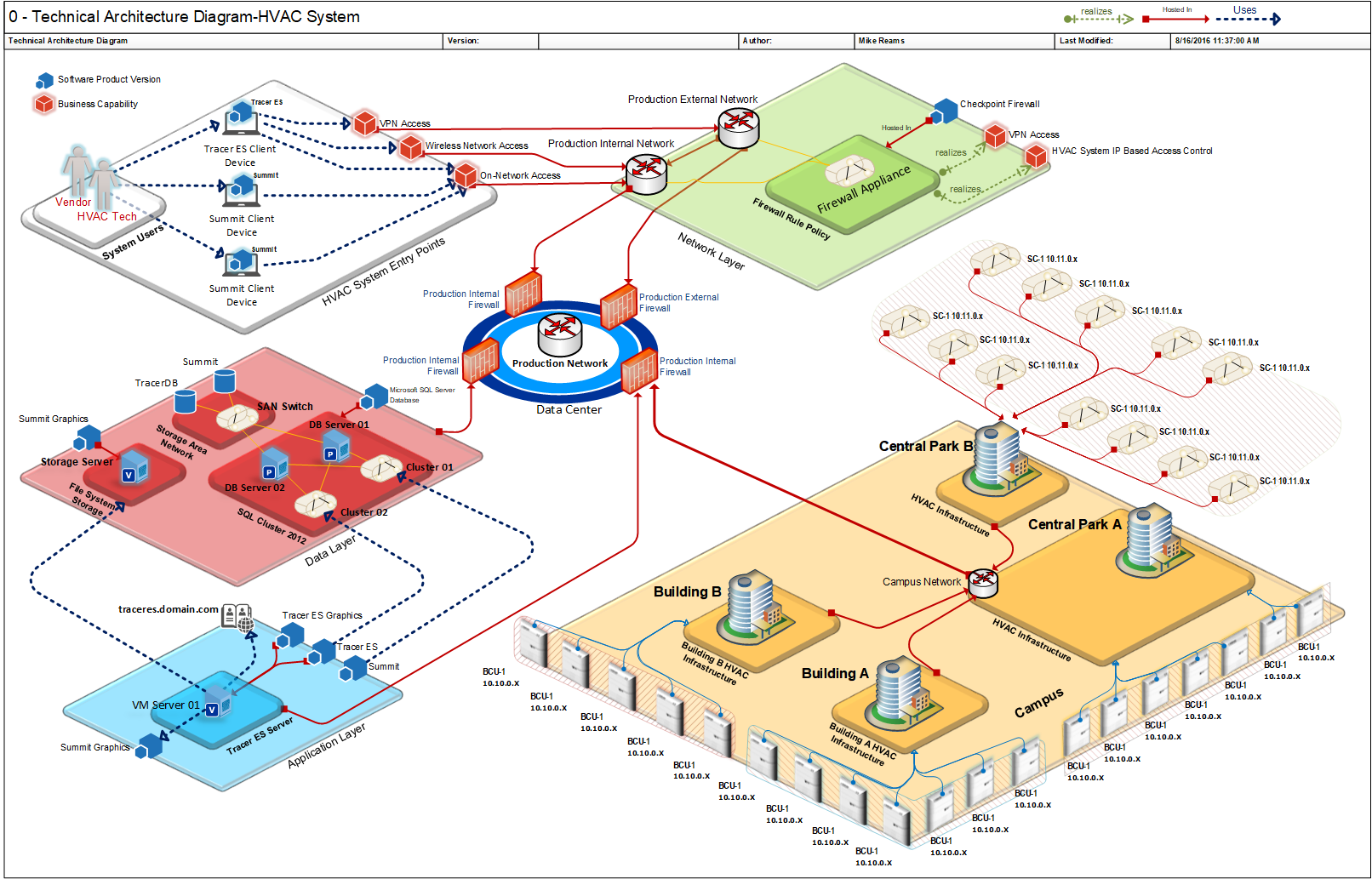

HVAC System Technical Architecture Diagram

Description:

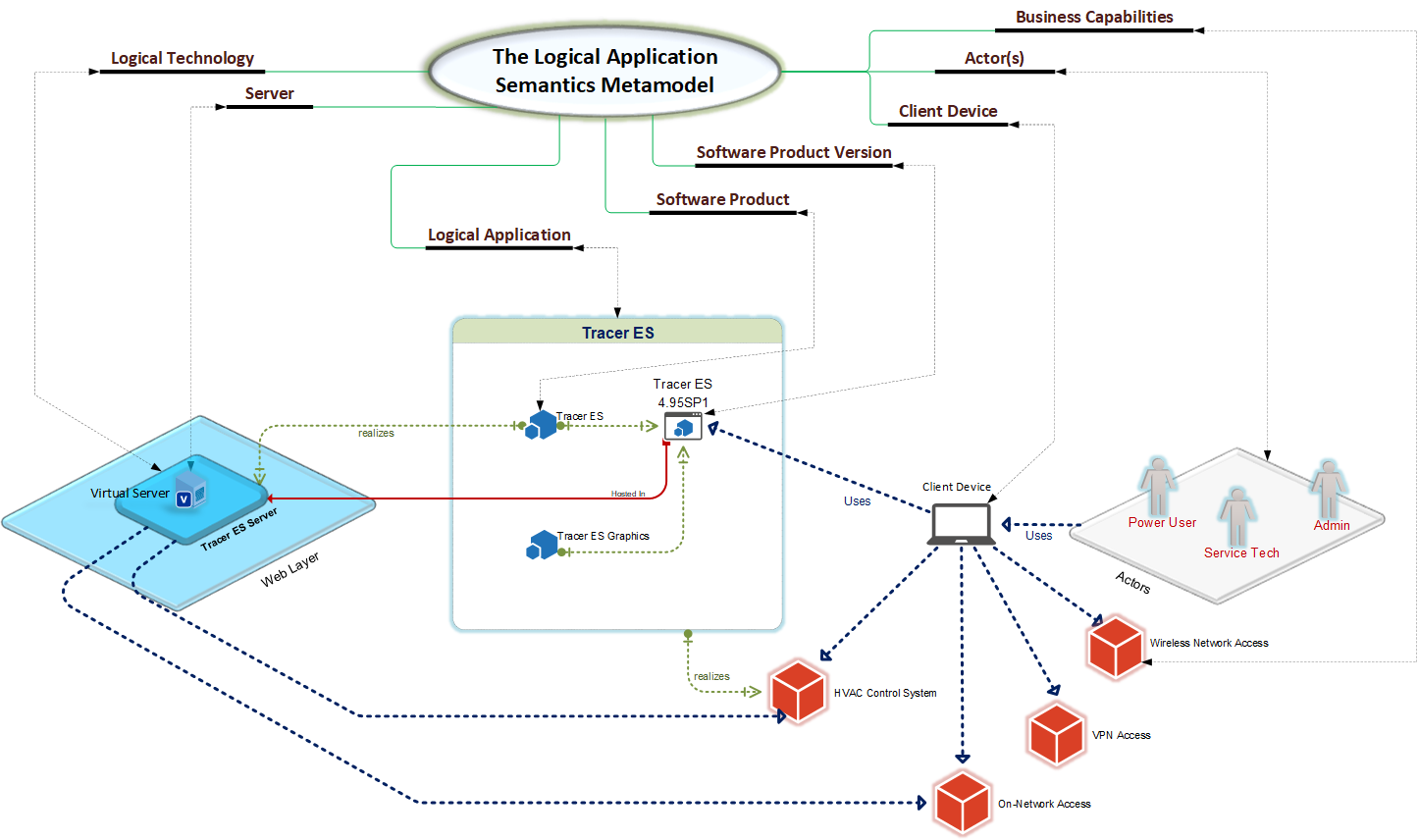

A Technical Architecture Diagram for an HVAC System using Tracer ES. Tracer ES is a web server-based systems integration solution that provides administrators with an online, enterprise-wide view of facilities, across all buildings and systems, from the interface of any PC on the network.

Goal:

Replace existing Summit software with Tracer ES and wrap an identity management layer for accessing the system.
